Spyder Legs
Swing-Out Jack Stands for Spyder Systems
5,000 lb leveling legs that maintain a level deployment on flat ground, slopes, and uneven terrain.
Product Overview
Stability. Capacity. Terrain.
Integrated 5,000 lb jack stands that transfer load from the trailer to ground contact points for more controlled, secure setups.

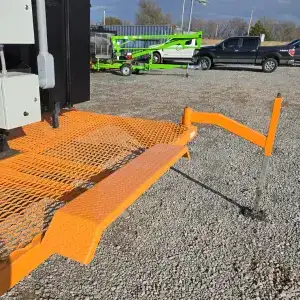

Swings out to create a wider, more stable base.
Adjustable 29″ jack stands.
System Architecture
Jack stand details that shape deployment, in-use behavior, and long-term value.

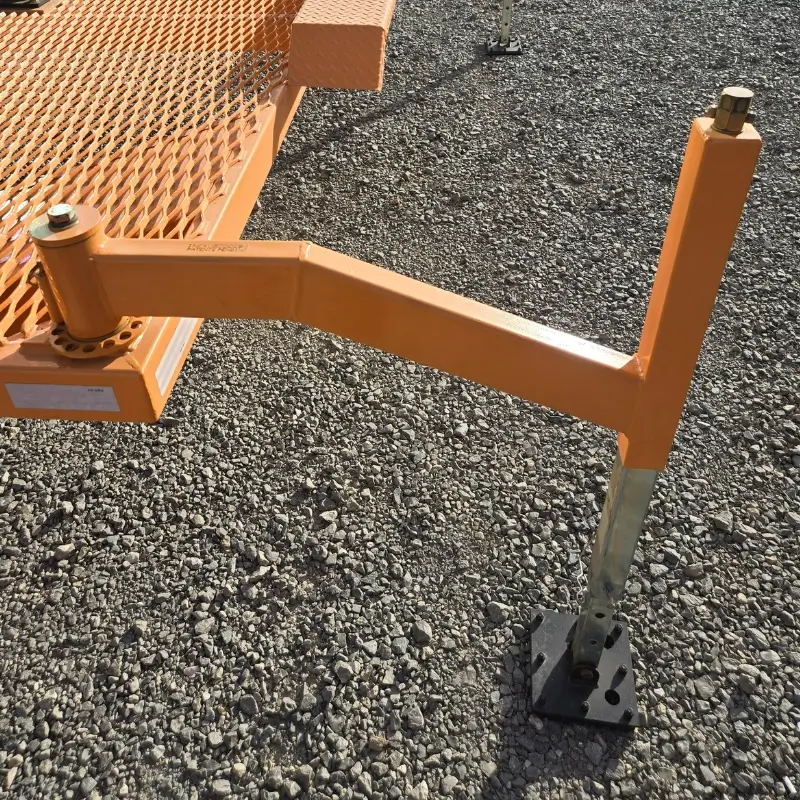

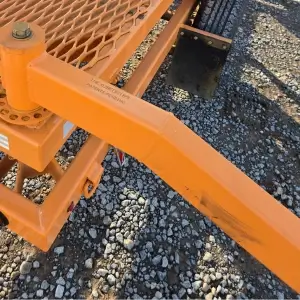

Swing‑out jack stand assemblies made with 3/16" steel for use with the Spyder Platform and Spyder Base, supporting long‑term structural performance.

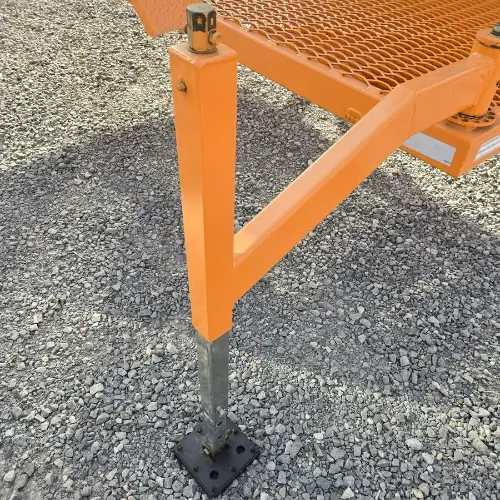

Delivers the slope capability to 33 degrees, working with the base footprint and Tarsus Cleated Footplates to keep the PCMS deployment stable on varying grades and in sustained wind conditions.
Applications
Field Deployment Use Cases
Spyder Legs support leveled deployments on graded shoulders, gravel, compacted soil, and other suitable set‑back sites.
Graded Shoulders
Maintains a level Spyder deployment on compacted, graded shoulders where the surface slopes away from the roadway. The portable changeable message sign remains level and secure for set‑back deployments clear of traffic.
Unpaved Medians
Provides 29″ of vertical adjustment on unpaved medians so the Spyder Platform/Base can sit level on contoured or sloped ground, bridging minor grade changes and distributing platform load into stable ground contact locations.
Access Points
29″ swing‑out jack stands accommodate elevation changes at access points where pavement transitions to soil or grass, keeping the Spyder Platform/Base level while transferring load into defined support points beyond the lane edge.
Technical Overview
Specifications & Details
Supports level Spyder deployments on uneven ground by adding controlled adjustment and defined contact points around the platform, improving overall stability without adding deployment steps.
3/16" steel
Model 100700
Configuration
-
Swing‑out jack stand assembly
-
Available individually or as a set of four for Spyder deployments
Load Capacity
5,000 lb jack stands integrated into the Spyder support system
Adjustment Range
29″ height extension for leveling on sloped or contoured ground
System Integration
Used exclusively with Spyder Platform and Spyder Base to achieve specified stability and wind‑resistance performance
Included Components
Spyder Leg assembly kit with attaching hardware.
Related Products
Spyder Platform
Full-Size Full-Matrix Portable Changeable Message Sign
Spyder Base
Retrofit solution for damaged trailers.
The Jeep
Dedicated transport trailer for Spyder Platforms.
Tarsus Footplates
Tarsus Footplates increase ground grip and resist movement.
General Information
Frequently asked questions
Do Spyder Legs make leveling easier during deployment?
Yes. Their swing‑out design and 29 inch extension give crews more adjustment range on uneven ground.

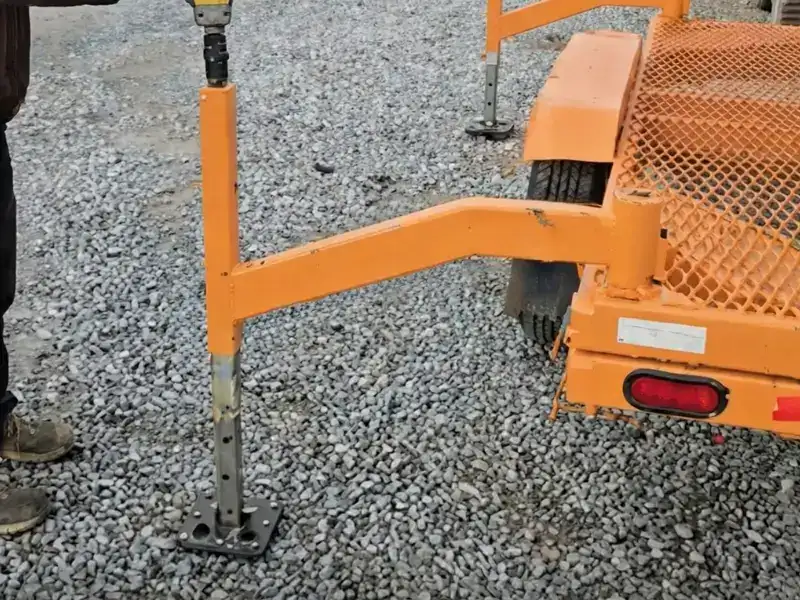

The deployment‑friendly Spyder system uses one tool and one crew member for deployments.
Can Spyder Legs be used as standalone jacks?
No. Spyder Legs are integrated swing‑out jack stands used only with the Spyder Platform and Spyder Base systems; for replacement leg assemblies, contact INEX sales or support
How do Spyder Legs contribute to slope capability in a deployment?
Spyder Legs provide swing‑out, 29 inch extendable support that works with the Spyder base footprint and Tarsus Footplates to enable deployments on slopes up to 33 degrees.
Do Spyder Legs require any special maintenance?
Spyder Legs are steel swing‑out jack stands that are designed as part of the Spyder Platform/Base structure; follow your organization’s standard inspection and maintenance practices for structural steel components in traffic control equipment.
Are Spyder Legs included?
Yes. Spyder Legs are part of the integrated support system on Spyder Platform and Spyder Base units and do not need to be ordered as a separate accessory.
Do Spyder Legs need separate setup in the field, or are they built into the Spyder Platform/Spyder Base?
Spyder Legs are built-in swing‑out jack stands on the Spyder Platform and Spyder Base, so there is no separate jack system to assemble or attach in the field.
